The USB 2.0 5 Pin Mini B 2 Hole PCB is a compact and versatile component for easy integration into electronic devices. This USB component with a 5-pin Mini B connector and 2-hole PCB design offers a reliable connection for data transfer and power supply. Perfect for small electronic devices like cameras and MP3 players, this USB 2.0 component ensures seamless connectivity and high-speed data transfer.

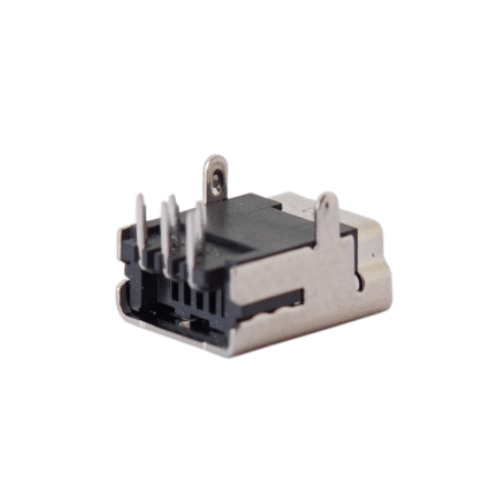

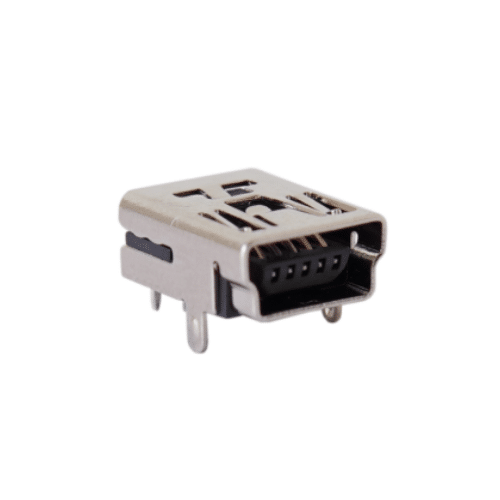

USB 2.0 5 Pin Mini B 2 Hole PCB
₹30.24 Inclusive of Taxes
- Standard: USB 2.0 B
- Contact Type: Female
- Number of Contacts: 5
- Termination: Solder
- Wire Gauge: 24-28
- Rated Current: 1A
- Insulation Resistance: 100 MΩ Min.
- Voltage: 30 V AC
- Contact Resistance: 50 mΩ Max.
- Operating Temperature: 0°C to 50°C
- Contact Material: Tin
- Contact Plating: Gold Flash
- Insulation Colour: Black
- Insulation Material: Thermoplastic, LCP U1 94V-0
- Shell: Steel, Nickel Plated
- Mounting Angle: Right Angle
1503 in stock
BULK ORDER? REQUEST FOR PRINCING
Warranty
7 Days
Connectors
USB 2.0 5 Pin Mini B 2 Hole PCB
Country of Origin
Made in China
Packing Information
L x W x H (cm) - 20 x 18 x 5
Shipping Weight (Kg) -
In the Box
1 USB 2.0 5 Pin Mini B 2 Hole PCB (the connector with selected position will be included)
