Our Products
INTERFACE (R) CABLES 2C 0.35 SQ.MM (22AWG) FS 300V 80°C FR VW-1 PVC CABLE UL AWM 2464 E486063 ROHS
Packing: Reel
Number of cores: 2
Wire Gauge: 22
Conductor Strand: 7 x 0.25 mm
Conductor Material: Bare Copper (OFC)
Insulation Material: Polyethylene (PE)
Insulation Diameter: 1.3 mm
Insulation Thickness: 0.27 mm
Voltage: 300V
Operating Temperature: -20°C to +80°C
Colour: Grey (RAL7001)
UL Rating: 2464
View/ Download Data Sheet
INTERFACE® CABLES 4C 0.35 SQ.MM (22AWG) FS 300V 80°C FR VW-1 PVC CABLE UL AWM 2464 E486063 ROHS
Packing: Reel
Number of cores: 4
Wire Gauge: 22
Conductor Strand: 7 x 0.25 mm
Conductor Material: Bare Copper (OFC)
Insulation Material: Polyethylene (PE)
Insulation Diameter: 1.3 mm
Insulation Thickness: 0.27 mm
Voltage: 300V
Operating Temperature: -20°C to +80°C
Colour: Grey (RAL7001)
UL Rating: 2464
View/ Download Data Sheet
INTERFACE® CABLES 8C 0.35 SQ.MM (22AWG) FS 300V 80°C FR VW-1 PVC CABLE UL AWM 2464 E486063 ROHS
Packing: Reel
Number of cores: 4
Wire Gauge: 22
Conductor Strand: 7 x 0.25 mm
Conductor Material: Bare Copper (OFC)
Insulation Material: Polyethylene (PE)
Insulation Diameter: 1.3 mm
Insulation Thickness: 0.27 mm
Voltage: 300V
Operating Temperature: -20°C to +80°C
Colour: Grey (RAL7001)
UL Rating: 2464
View/ Download Data Sheet
INTERFACE® CABLES 2C 0.56 SQ.MM (20AWG) FS 300V 80°C FR VW-1 PVC CABLE UL AWM 2464 E486063 ROHS
Packing: Reel
Number of cores: 2
Wire Gauge: 20
Conductor Strand: 7 x 0.32 mm
Conductor Material: Bare Copper (OFC)
Insulation Material: Polyethylene (PE)
Insulation Diameter: 1.5 mm
Insulation Thickness: 0.27 mm
Voltage: 300V
Operating Temperature: -20°C to +80°C
Colour: Grey (RAL7001)
UL Rating: 2464
View/ Download Data Sheet
INTERFACE® CABLES 4C 0.56 SQ.MM (20AWG) FS 300V 80°C FR VW-1 PVC CABLE UL AWM 2464 E486063 ROHS
Packing: Reel
Number of cores: 4
Wire Gauge: 20
Conductor Strand: 7 x 0.32 mm
Conductor Material: Bare Copper (OFC)
Insulation Material: Polyethylene (PE)
Insulation Diameter: 1.5 mm
Insulation Thickness: 0.27 mm
Voltage: 300V
Operating Temperature: -20°C to +80°C
Colour: Grey (RAL7001)
UL Rating: 2464
View/ Download Data Sheet
INTERFACE® CABLES 2C 0.90 SQ.MM (18AWG) FS 300V 80°C FR VW-1 PVC CABLE UL AWM 2464 E486063 ROHS
Packing: Reel
Number of cores: 2
Wire Gauge: 18
Conductor Strand: 7 x 0.40 mm
Conductor Material: Bare Copper (OFC)
Insulation Material: Polyethylene (PE)
Insulation Diameter: 1.7 mm
Insulation Thickness: 0.25 mm
Voltage: 300V
Operating Temperature: -20°C to +80°C
Colour: Grey (RAL7001)
UL Rating: 2464
View/ Download Data Sheet CABLE | CONNECTORS | CONNECTIVITY | CABLE HARNESS/ASSEMBLIES
CABLES
Interface UI and NON UL cables are available inPE LSZH and PVC.
CONNECTORS

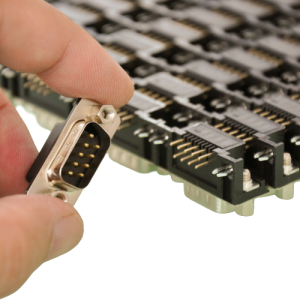

From legacy connector such as D SUB to IP rated Connectors.
CONNECTIVITY
Need a locking solution for your notebook or want to extend to dual screens
CABLE HARNESS
Made in India Patch Cords and USB cable Assemblies
