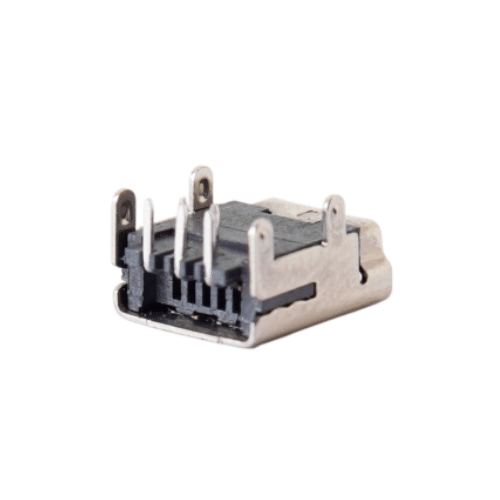

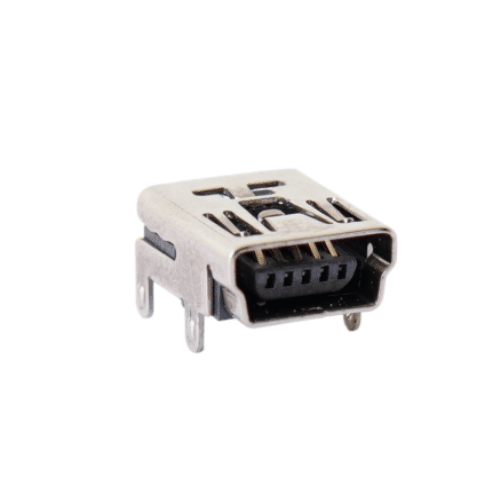

The USB 2.0 5 Pin Mini B 4 Hole PCB is a compact connector designed for various electronic devices. It features a 5-pin mini B connector with 4 mounting holes for stability. Compatible with USB 2.0, it enables high-speed data transfer and is ideal for mobile phones, digital cameras, and other portable devices, thanks to its small size and durable construction.
Interface® USB 2.0 5 Pin Mini B 4 Hole PCB
₹30.24 Inclusive of Taxes
You save
- Standard:USB 2.0 B
- Contact Type: Female
- Number of Contacts: 5
- Termination: Solder
- Wire Gauge: 24-28
- Rated Current: 1A
- Insulation Resistance: 100 MΩ Min.
- Voltage: 30 V AC
- Contact Resistance: 50 mΩ Max.
- Operating Temperature: 0°C to 50°C
- Contact Material: Tin
- Contact Plating: Gold Flash
- Insulation Colour: Black
- Insulation Material: Thermoplastic, LCP U1 94V-0
- Shell: Steel, Nickel Plated
- Mounting Angle: Right Angle
2888 in stock
BULK ORDER? REQUEST FOR PRINCING
Warranty
7 Days
Connectors
USB 2.0 5 Pin Mini B 4 Hole PCB
Country of Origin
Made in China
Packing Information
L x W x H (cm) - 20 x 18 x 5
Shipping Weight (Kg) -
In the Box
1 USB 2.0 5 Pin Mini B 4 Hole PCB (the connector with selected position will be included)
