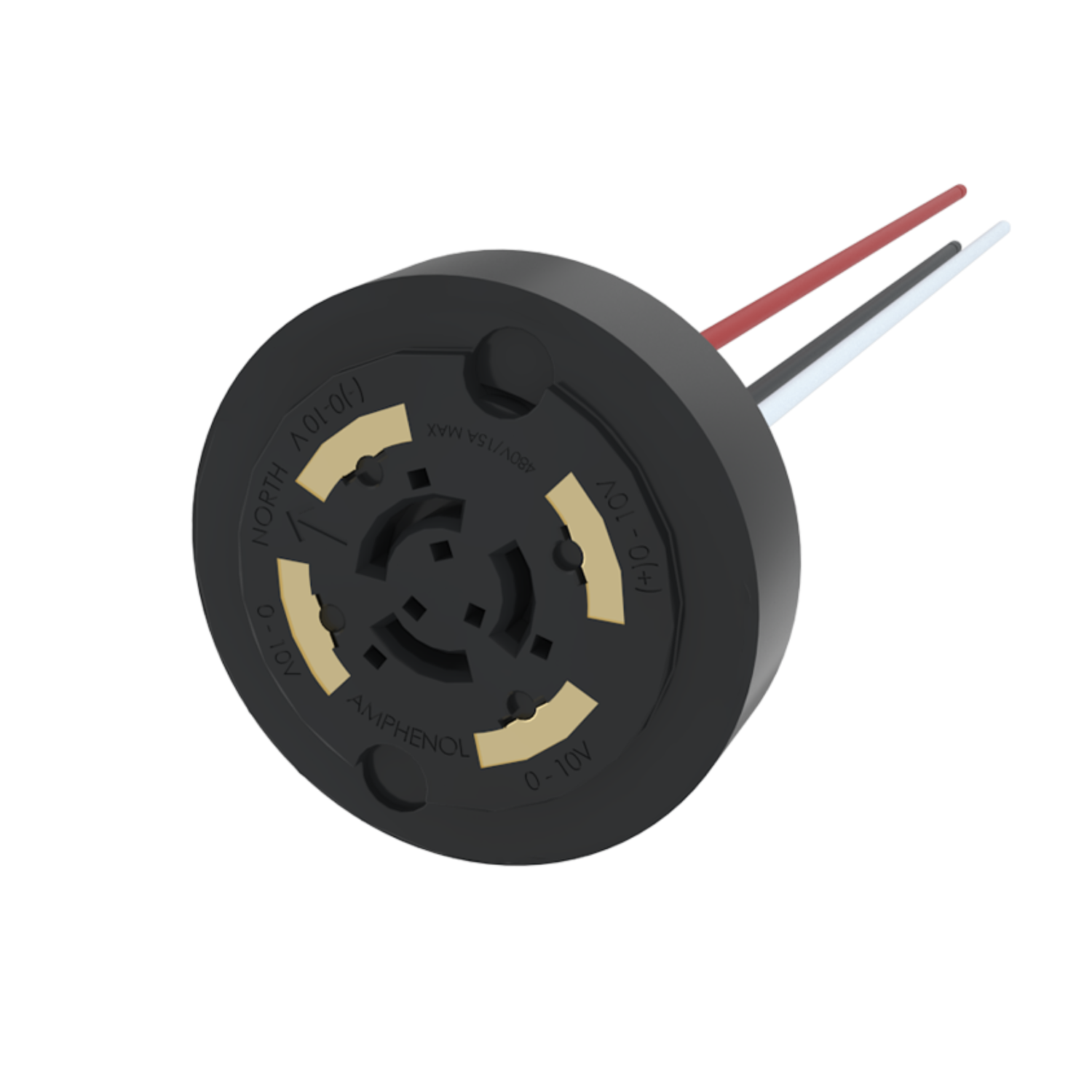

Amphenol FLA Receptacle NEMA ANSI C136.41, 3 Power, No Signal, 14AWG, 105C
You save
- Number of Contacts : 3P/0S
- Number of Contacts per Port Loaded : 3 power contacts and no dimming contacts
- Number of Ports : 1
- Color – Housing : Black
- Current Rating : 15A/Contact
- Flammability Rating : UL 94 V-0
- Gender: Receptacle
- Material Housing : Thermoplastic
- Operating Temperature Range : -40°C to +105°C
- Orientation: Fixed
- Packaging: Box
- Performance Category : NEMA ANSI C136.41
- Plating Contact area : Gold over Nickel
- Product Series : BrightConnX ANSI C136.41 FLA Series Receptacles & Caps
- Termination Style : Pig tail Wires, 305mm
- Voltage Rating : 600V AC/DC
