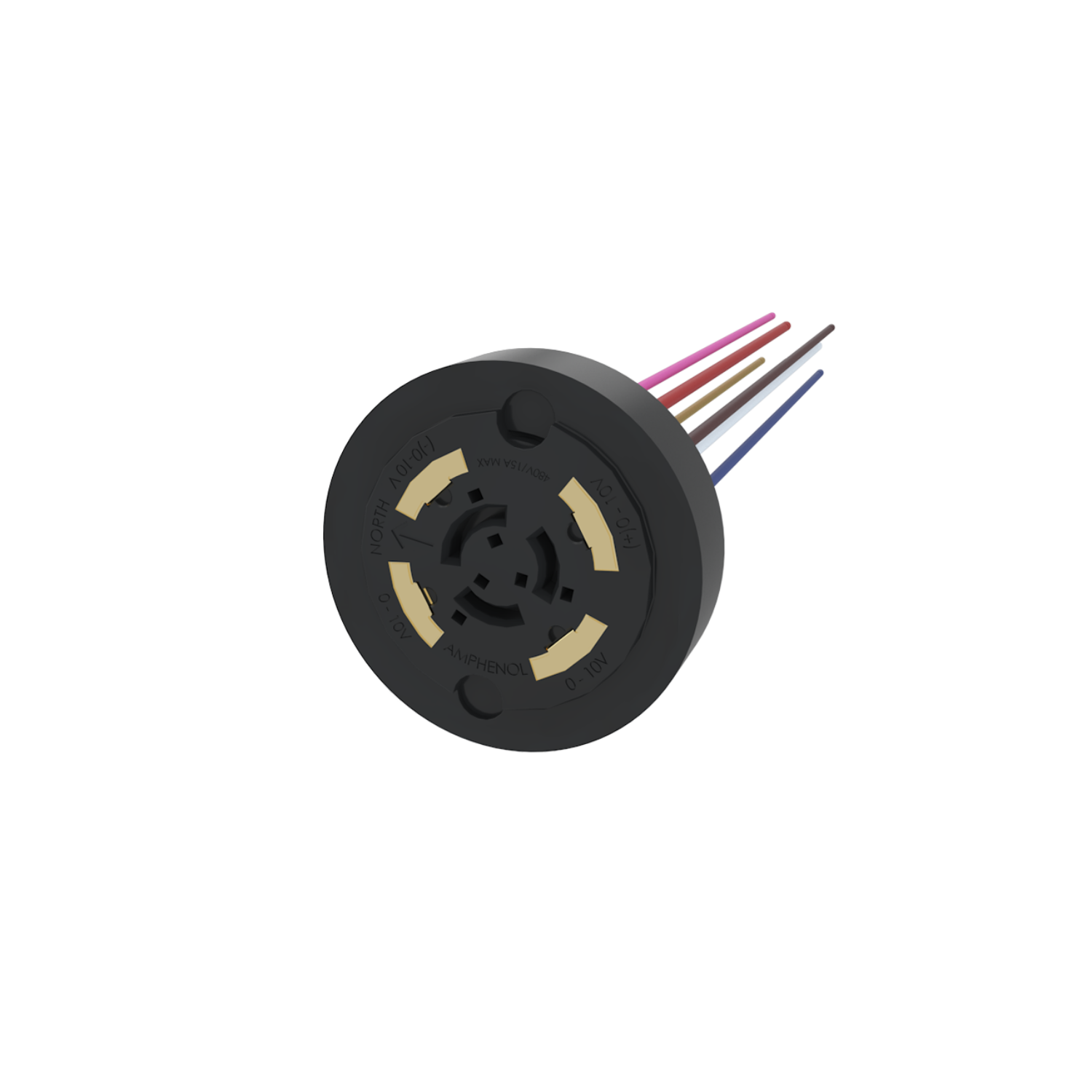

Amphenol FLA Receptacle NEMA ANSI C136.41, 3 Power, 4 Signal, 16AWG, 105C
You save
- Number of Contacts: 3P/4S
- Number of Ports: 1
- Color: – Housing Black
- Current Rating: 15A
- Flammability Rating :UL 94 V-0
- Gender : Receptacle
- Material Contact : Copper Alloy
- Material Housing : Thermoplastic
- Operating Temperature Range: -40°C to +105°C
- Orientation: Fixed
- Packaging: Box
- Performance Category: NEMA ANSI C136.41
- Plating Contact area: Gold over Nickel
- Product Series: BrightConnX ANSI C136.41 FLA Series Receptacles & Caps
- Termination Style: Pig tail Wires, 305mm
- Voltage Rating: 600V AC (P), 30V DC (S)
- Wire Size : 16AWG(P), 18AWG(S)
