Home Computer Accessories Power Distribution Unit Power Extension Board Interface® Heavy Duty 16A PDU 240V, MSB + Red LED Indicator, 1U Rack Mount with Inlet 1.5 Meter’s 16A Cable, Outlet 6 x 6/16A Metal, Black – India

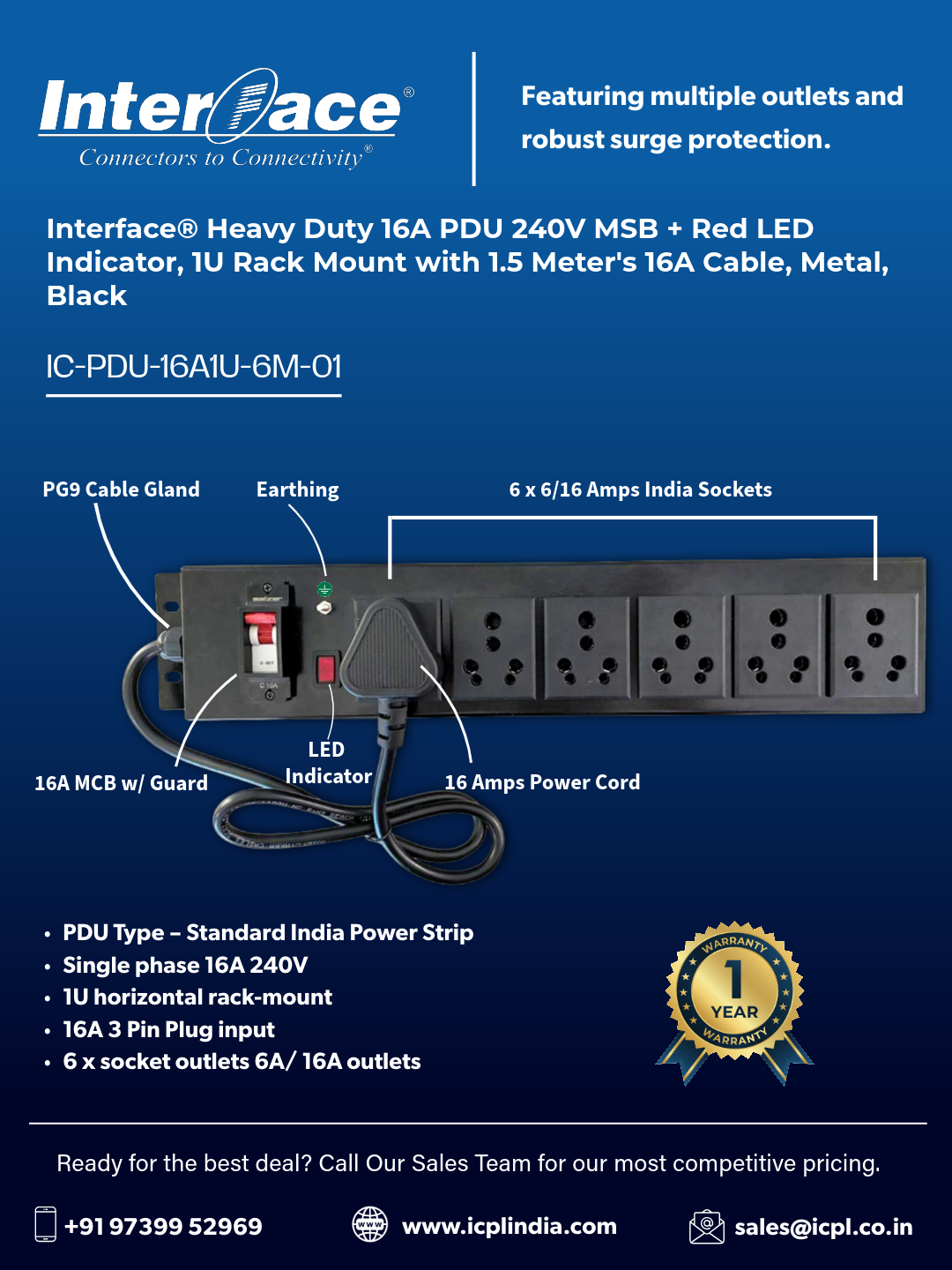

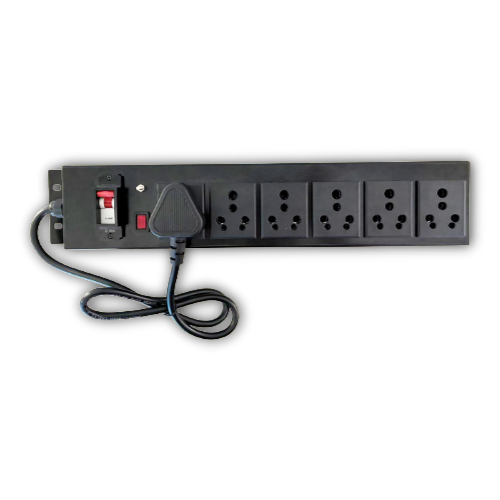

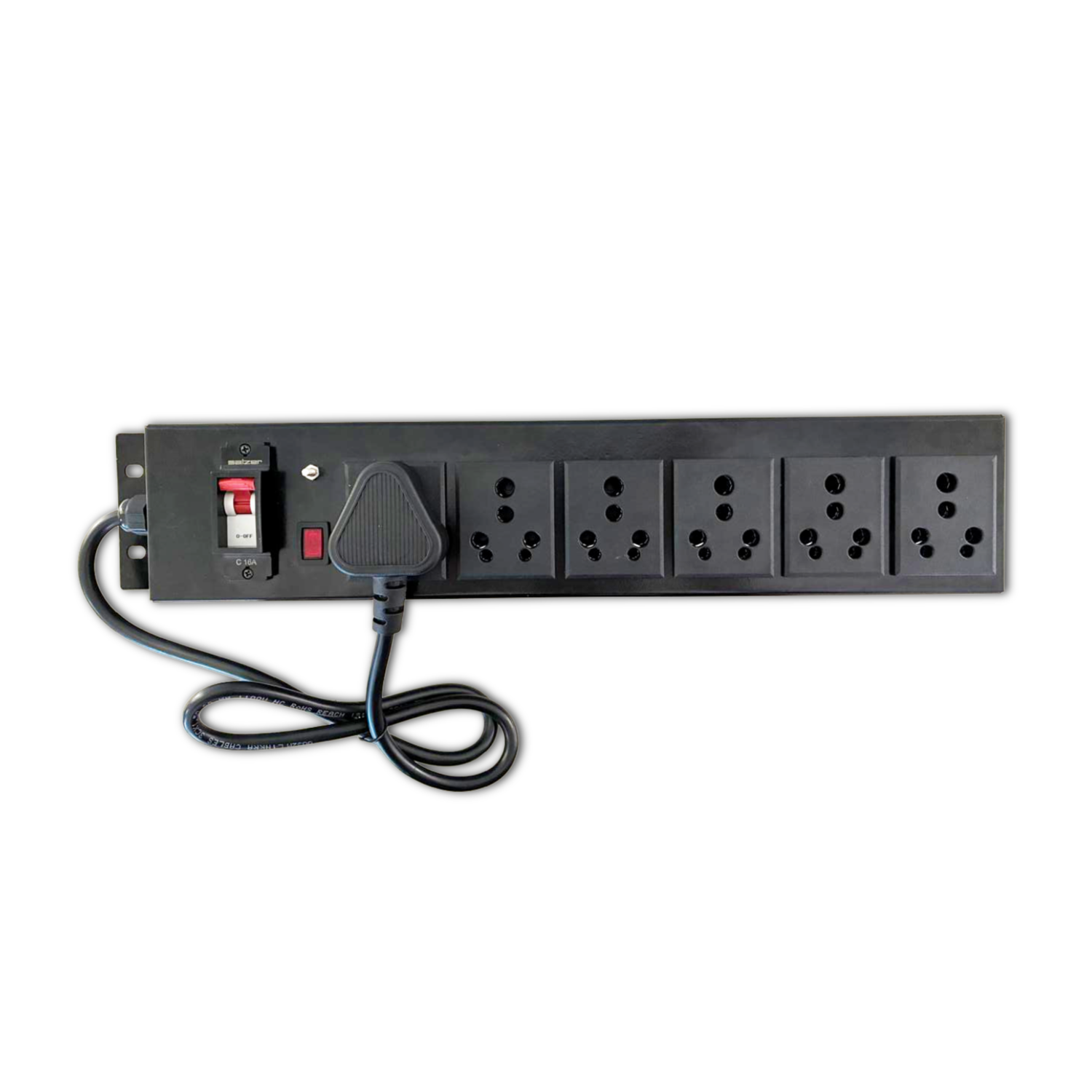

Interface® Heavy Duty 16A PDU 240V, MSB + Red LED Indicator, 1U Rack Mount with Inlet 1.5 Meter’s 16A Cable, Outlet 6 x 6/16A Metal, Black – India


You save

SKU: IC-PDU-16A1U-6M-01 Category: Power Extension Board Manufacturer Interface Connectronics
  • Input Voltage: 240V
  • Output Sockets:  6 × 6/16A Multi-Standard Sockets
  • Switch Type:  MSB (Main Circuit Breaker) 16Amp
  • Visual Indicator: Red LED
  • Cable Length: 1.5 Meters
  • Cable Rating: 16A 3 Pin Plug
  • Enclosure Material: Heavy Duty Metal
  • Finish: Powder Coated Black
  • Load: Maximum safe capacity of 2,000 Watts
  • Click Here for Extension Cords
  • Click Here for Power Cords
BULK ORDER? REQUEST FOR PRINCING

  • Overview
  • Specifications
  • Drivers and Downloads
  • e-shop

Overview

Product Overview

This Heavy Duty 16A PDU (Power Distribution Unit) is designed for optimal performance in demanding environments, featuring a robust 240V MSB configuration. Its 1U rack mount design ensures efficient space utilization, while the included 1.5-meter 16A cable provides flexibility in setup. The striking red LED indicator allows for easy monitoring of power status, ensuring you are always informed. Constructed from durable metal and finished in sleek black, this PDU not only delivers reliability but also complements any professional setup, making it an essential addition for your equipment needs.



Specifications

Input
Input Type  3 Pin 16 Amps 1.5 meters
Input Voltage 240V
Input Current 16A @ 240 V AC
Input Frequency 50/ 60 Hz



Output
Output Voltage Multi-Standard Sockets India
Output Quantity  6 × 6/16A
Max. Output/ Socket 16A @ 240 V



Physical
Max. Height (mm) 480.00
Max. Width (mm) 870.00
Max. Depth (mm) 50.00
Colour Black
Material Metal
Operating Temperature Ambient
Storage Temperature Ambient



Conformance
Product Compliance -



Warranty
Product Warranty One year limited warranty
Country of Origin

Made in India

Drivers and Downloads

Datasheet and Technical Specification (Language: EN)

IC-PDU-16A1U-6M-01 Datasheet
IC-PDU-16A1U-6M-01 Catalogue
