Enhance your electronic projects with our 2.54mm 30 Pin Dual Row Berg Stick Connector. Designed for reliability and ease of use, this connector features a straight design with a 25.5mm insulation height, making it ideal for various applications in basic circuit connections and prototyping.

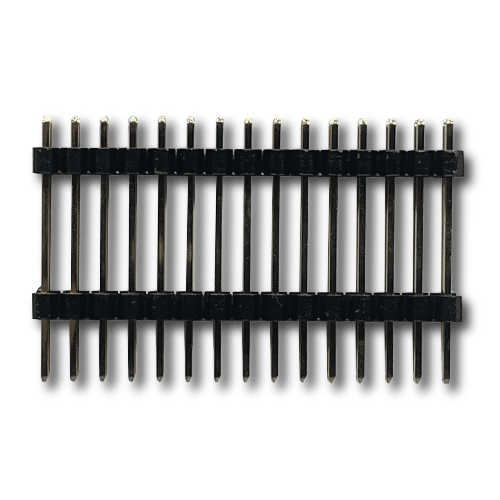

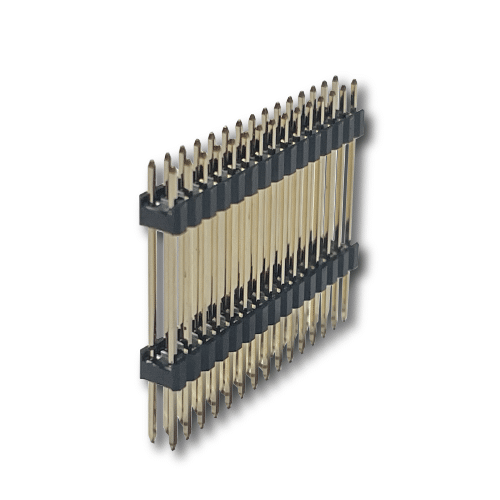

Interface® 2.54mm 30 Pin Dual Row Berg Stick (15*2) Straight Insulation Height – 25.5mm
₹128.52 Inclusive of Taxes
You save
- Pitch: 2.54mm
- Contact Type: Plug|Male Pins
- Number of Positions: 30
- Number of Rows: 2
- Termination: Solder
- Wire Gauge: 24-28
- Rated Current: 3A
- Insulation Resistance: 1000 MΩ Min.
- Voltage: 100 V AC
- Contact Resistance: 20 mΩ Max.
- Operating Temperature: -40°C to 105°C
- Contact Material: Brass
- Contact Plating: Gold Over Nickel Plating
- Insulation Colour : Black
- Insulation Material: PBT (Polybutylene Terephthalate) (UL94V-0)
- Mounting Angle: Straight
43 in stock
BULK ORDER? REQUEST FOR PRINCING
Warranty
7 Days
Connectors
2.54mm Dual Row Straight Berg Stick
Country of Origin
Made in China
Packing Information
L x W x H (cm) - 20 x 18 x 5
Shipping Weight (Kg) -
In the Box
1 2.54mm 2.54mm 30 Pin Dual Row Berg Stick (15*2) Straight Insulation Height – 25.5mm
