Introducing the RJ45 8P8C Half Shielded Modular Jack with Fins Right Angle, a high-quality networking component designed to enhance connectivity and performance. This modular jack features a right-angle design, allowing for easy installation in tight spaces. With its half-shielded construction, it provides improved signal integrity and reduced electromagnetic interference. The fins on the jack ensure a secure and stable connection, preventing accidental disconnections. Compatible with standard RJ45 connectors, this modular jack is perfect for various networking applications, including Ethernet and telecommunications. The connector is compatible with our Patch Cords providing versatility and ease of use in a wide range of electronic devices.

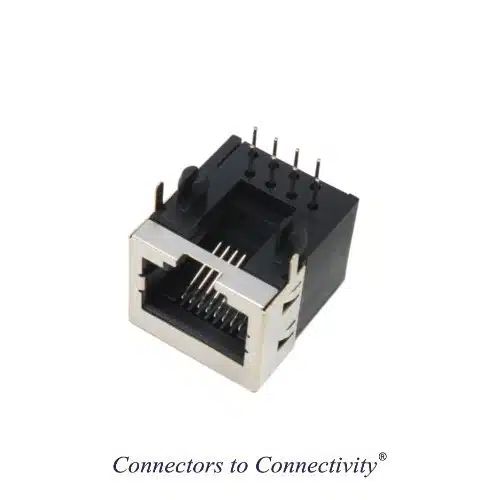

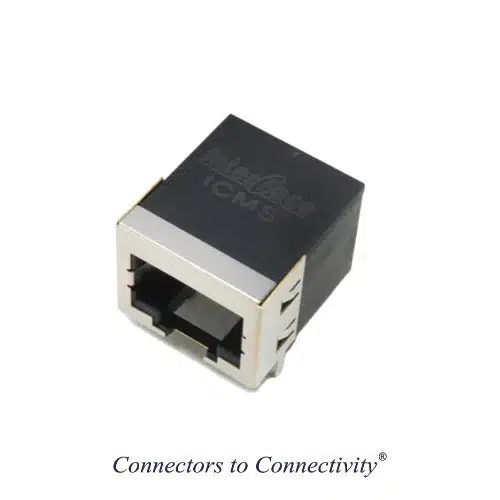

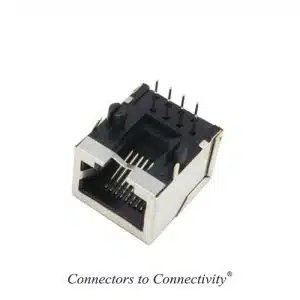

RJ45 8P8C Half Shielded Modular Jack with Fins Right Angle
₹30.24 Inclusive of Taxes
You save
- Pitch: 2.54mm
- Contact Type: Receptacle, Female Socket
- Number of Ports: 1
- Number of Positions: 8
- Number of Contacts: 8
- LED: NA
- Termination: Solder
- Rated Current: 1.5A
- Insulation Resistance: 500 MΩ Min.
- Voltage: 125 V AC
- Contact Resistance: 20 mΩ Max.
- Operating Temperature: -40°C to 70°CContact Material: Nickel
- Contact Plating: Gold Flash
- Housing Colour : Black
- Housing Material: Nylon46 (UL 94V – 0)
- Mating Cycles: 750
- Shell: With Half Shell
- Mounting Angle: Right Angle
- Shielding: CuZn (C2860)
498 in stock
BULK ORDER? REQUEST FOR PRINCING
Warranty
7 Days
Connectors
RJ45 8P8C Half Shielded Modular Jack with Fins Right Angle
Country of Origin
Made in China
Packing Information
L x W x H (cm) - 20 x 18 x 5
Shipping Weight (Kg) -
In the Box
1 RJ45 8P8C Half Shielded Modular Jack with Fins Right Angle (the connector with selected position will be included)
RoHS Compliance Certificate (Language: EN)
RoHS Declaration
COO Compliance Certificate (Language: EN)
COO Certificate
Datasheet and Technical Specification (Language: EN)
ICMS-8S5 Datasheet
Related products

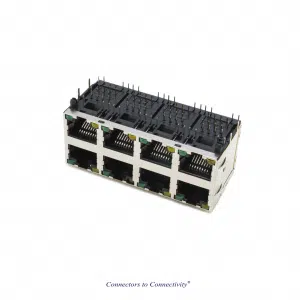

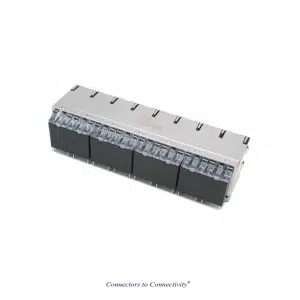

2×4 RJ45 8P8C Shielded with Dual LED and Fins Modular Jack Right Angle
₹637.20 Inclusive of TaxesYou save

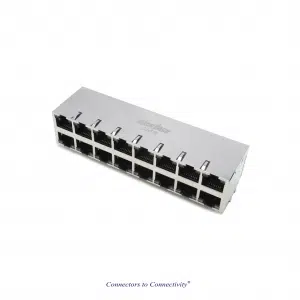

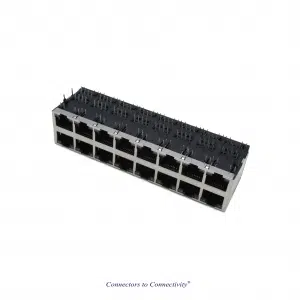

2×8 RJ45 8P8C Shielded with Single LED and Fins Modular Jack Right Angle
₹1,188.00 Inclusive of TaxesYou save
8P8C Vertical Through Mount Unshielded Modular Jack Right Angle Gray
₹25.92 Inclusive of TaxesYou save

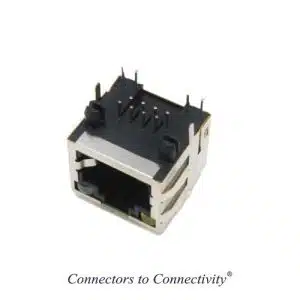

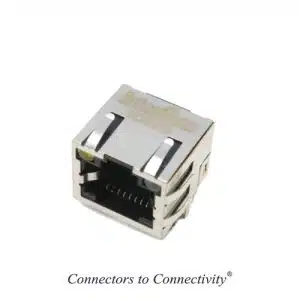

RJ45 8P8C Shielded Modular Jack with Single LED and Fins Right Angle
